概 述XJ新式漿液泵是臥式、單級、單吸離心泵,吸收國內外同類產品的先進技術,精心研制的新一代系列漿液泵,符合現代行業高效、節能、運行可靠、無故障、時間長、無泄漏、維修方便等要求。用 途可用作石灰石漿液
概 述
XJ新式漿液泵是臥式、單級、單吸離心泵,吸收國內外同類產品的先進技術,精心研制的新一代系列漿液泵,符合現代行業高效、節能、運行可靠、無故障、時間長、無泄漏、維修方便等要求。
用 途
可用作石灰石漿液輸送泵、石膏液排出泵、過濾器給料泵、吸收塔循環泵、回收泵等。
用于濃度6%粗、細、漂白紙漿輸送,也適用于堿回收苛化工段(沉渣、濾液、乳液)輸送、也適用纖維長度30~40mm棉漿、化學漿的輸送。
型號說明
XJ65-200 XJ —— 表示新式漿液泵
65 —— 表示泵出口直徑(mm)
200 —— 表示葉輪名義直徑(mm)
適用工況
1、泵流量范圍:15~2500m3/h
2、揚程范圍: 5~60m
3、重量濃度:≤60%
4、介質溫度:≤100℃
5、PH值:2.5~13

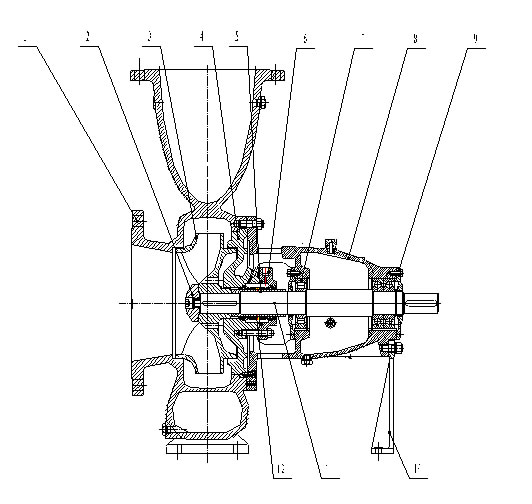

結構形式
1、泵體 2、葉輪壓板 3、葉輪 4、泵蓋 5、軸套
6、機械密封壓蓋 7、軸承 8、懸架體 9、軸承壓蓋
10、支腳 11、軸 12、機械密封
性能參數表
型號 | 流量m3/h | 揚程m | 轉速 | 配用 | 汽蝕 | 通過 | 效率 | 進口 | 出口 | |||
額點 | 范圍 | 額點 | 范圍 | |||||||||
XJ65-200 | 25 | 20-35 | 12.5 | 15-8 | 1450 | 3 | 1.8 | 20 | 61 | 100 | 65 | |
A | 20 | 18-30 | 10 | 10-6 | 2.2 | 54 | ||||||
XJ65-250 | 25 | 20-35 | 20 | 23-18 | 4 | 56 | ||||||
A | 20 | 18-30 | 18 | 18-16 | 3 | 52 | ||||||
XJ65-320 | 25 | 20-35 | 32 | 36-23 | 7.5 | 53 | ||||||
A | 20 | 18-30 | 27 | 30-26 | 5.5 | 51 | ||||||
B | 16 | 16-25 | 25 | 26-23 | 4 | 50 | ||||||
XJ65-400 | 25 | 20-35 | 50 | 56-50 | 11 | 51 | ||||||
A | 20 | 18-30 | 46 | 48-45 | 7.5 | 50 | ||||||
B | 16 | 16-25 | 42 | 45-41 | 5.5 | 49 | ||||||
XJ80-200 | 50 | 35-75 | 12.5 | 15-8 | 1450 | 4 | 1.9 | 35 | 69 | 125 | 80 | |
A | 45 | 30-65 | 10 | 10-6 | 3 | 68 | ||||||
B | 40 | 25-55 | 8 | 8-6 | 2.2 | 67 | ||||||
XJ80-250 | 50 | 35-75 | 20 | 23-16 | 7.5 | 65 | ||||||
A | 45 | 30-60 | 18 | 20-16 | 5.5 | 64 | ||||||
B | 40 | 25-55 | 16 | 18-16 | 5.5 | 63 | ||||||
XJ80-320 | 50 | 35-75 | 32 | 36-32 | 11 | 61 | ||||||
A | 45 | 30-65 | 27 | 30-26 | 11 | 60 | ||||||
B | 40 | 25-55 | 25 | 26-23 | 7.5 | 59 | ||||||
XJ80-400 | 50 | 35-75 | 50 | 56-50 | 18.5 | 59 | ||||||
A | 45 | 30-60 | 46 | 48-45 | 15 | 58 | ||||||
B | 40 | 25-55 | 42 | 45-41 | 11 | 57 | ||||||
XJ100-210 | 100 | 75-120 | 12.5 | 15-8 | 1450 | 7.5 | 2.1 | 35 | 74 | 125 | 100 | |
A | 70 | 06-110 | 10 | 10-8 | 4 | 73 | ||||||
B | 65 | 50-90 | 8 | 8-6 | 3 | 72 | ||||||
XJ100-250 | 100 | 75-120 | 20 | 23-16 | 11 | 73 | ||||||
A | 70 | 60-110 | 18 | 20-18 | 7.5 | 72 | ||||||
B | 65 | 50-90 | 16 | 18-16 | 5.5 | 71 | ||||||
XJ100-300 | 100 | 75-120 | 32 | 36-32 | 18.5 | 71 | ||||||
A | 70 | 60-110 | 27 | 30-26 | 15 | 70 | ||||||
B | 65 | 50-90 | 25 | 26-23 | 11 | 69 | ||||||
XJ100-410 | 100 | 75-120 | 50 | 56-50 | 30 | 62 | ||||||
A | 70 | 60-110 | 46 | 48-45 | 22 | 61 | ||||||
B | 65 | 50-90 | 42 | 45-41 | 18.5 | 60 |
型號 | 流量m3/h | 揚程m | 轉速 | 配用 | 汽蝕 | 通過 | 效率 | 進口 | 出口 | |||
額點 | 范圍 | 額點 | 范圍 | |||||||||
XJ125-220 | 150 | 120-175 | 12.5 | 15-8 | 1450 | 11 | 2.2 | 40 | 75 | 150 | 125 | |
A | 120 | 100-160 | 10 | 10-8 | 7.5 | 74 | ||||||
B | 110 | 90-150 | 8 | 8-6 | 5.5 | 73 | ||||||
XJ125-270 | 150 | 120-200 | 20 | 23-16 | 18.5 | 75 | ||||||
A | 120 | 100-160 | 18 | 20-18 | 11 | 74 | ||||||
B | 110 | 90-150 | 16 | 18-16 | 7.5 | 73 | ||||||
XJ125-340 | 150 | 120-280 | 32 | 36-23 | 30 | 72 | ||||||
A | 120 | 100-250 | 27 | 30-26 | 22 | 71 | ||||||
B | 110 | 90-200 | 25 | 26-23 | 18.5 | 70 | ||||||
XJ125-410 | 150 | 120-280 | 50 | 56-50 | 45 | 67 | ||||||
A | 120 | 100-250 | 46 | 48-45 | 37 | 66 | ||||||
B | 110 | 90-200 | 42 | 45-41 | 30 | 65 | ||||||
XJ150-230 | 250 | 180-320 | 12.5 | 15-8 | 1450 | 15 | 2.6 | 55 | 76 | 200 | 150 | |
A | 210 | 180-280 | 10 | 10-8 | 11 | 75 | ||||||
B | 180 | 160-260 | 8 | 8-6 | 7.5 | 74 | ||||||
XJ150-280 | 250 | 180-320 | 20 | 23-16 | 22 | 76 | ||||||
A | 210 | 180-280 | 18 | 20-18 | 18.5 | 75 | ||||||
B | 180 | 160-260 | 16 | 18-16 | 15 | 74 | ||||||
XJ150-340 | 250 | 180-320 | 32 | 36-23 | 37 | 76 | ||||||
A | 210 | 180-280 | 27 | 30-26 | 30 | 75 | ||||||
B | 180 | 160-260 | 25 | 26-23 | 22 | 74 | ||||||
XJ150-410 | 250 | 180-320 | 50 | 56-50 | 55 | 73 | ||||||
A | 210 | 180-280 | 46 | 48-45 | 45 | 72 | ||||||
B | 180 | 160-260 | 42 | 45-41 | 37 | 71 | ||||||
XJ200-240 | 400 | 320-550 | 12.5 | 15-8 | 1450 | 22 | 3.3 | 65 | 76 | 250 | 200 | |
A | 370 | 370-450 | 10 | 10-8 | 18.5 | 75 | ||||||
B | 350 | 320-370 | 8 | 8-6 | 15 | 74 | ||||||
XJ200-290 | 400 | 320-550 | 20 | 23-16 | 37 | 78 | ||||||
A | 370 | 370-450 | 18 | 20-18 | 30 | 78 | ||||||
B | 350 | 320-370 | 16 | 18-16 | 22 | 77 | ||||||
XJ200-340 | 400 | 320-550 | 32 | 36-23 | 55 | 78 | ||||||
A | 370 | 370-450 | 27 | 30-25 | 45 | 77 | ||||||
B | 350 | 320-370 | 25 | 26-23 | 37 | 76 | ||||||
XJ200-430 | 400 | 320-550 | 50 | 56-50 | 90 | 76 | ||||||
A | 370 | 370-450 | 46 | 48-45 | 75 | 75 | ||||||
B | 350 | 320-370 | 42 | 45-41 | 55 | 74 | ||||||
XJ200-250 | 550 | 480-650 | 12.5 | 15-8 | 1450 | 30 | 4.0 | 70 | 77 | 250 | 200 | |
A | 500 | 500-600 | 10 | 10-8 | 22 | 76 | ||||||
B | 480 | 480-500 | 8 | 8-6 | 18.5 | 75 |
型號 | 流量m3/h | 揚程m | 轉速 | 配用 | 汽蝕 | 通過 | 效率 | 進口 | 出口 | |||
額點 | 范圍 | 額點 | 范圍 | |||||||||
XJ350-600 | 1500 | 1350-1650 | 32 | 36-23 | 980 | 220 | 4.5 | 80 | 81 | 400 | 350 | |
A | 1350 | 1350-1550 | 27 | 30-26 | 185 | 81 | ||||||
B | 1250 | 1250-1450 | 25 | 26-23 | 160 | 81 | ||||||
XJ350-650 | 1500 | 1350-1650 | 50 | 56-50 | 355 | 81 | ||||||
A | 1350 | 1350-1550 | 46 | 48-45 | 315 | 79 | ||||||
B | 1250 | 1250-1450 | 42 | 45-41 | 280 | 78 | ||||||
XJ400-450 | 1650 | 1600-18, 00 | 12.5 | 15-18 | 980 | 110 | 4.8 | 85 | 79 | 450 | 400 | |
A | 1480 | 1400-1550 | 10 | 10-8 | 90 | 78 | ||||||
B | 1380 | 1300-1450 | 8 | 8-6 | 75 | 77 | ||||||
XJ400-500 | 1650 | 1600-1800 | 20 | 23-16 | 132 | 82 | ||||||
A | 1480 | 1400-1550 | 18 | 20-18 | 110 | 80 | ||||||
B | 1380 | 1300-1450 | 16 | 18-16 | 90 | 78 | ||||||
XJ400-550 | 1650 | 1600-1800 | 32 | 36-23 | 320 | 83 | ||||||
A | 1480 | 1400-1550 | 27 | 30-26 | 185 | 80 | ||||||
B | 1380 | 1300-1550 | 25 | 26-23 | 160 | 79 | ||||||
XJ400-600 | 1650 | 1600-1800 | 50 | 56-50 | 355 | 83 | ||||||
A | 1480 | 1400-1550 | 46 | 48-45 | 315 | 81 | ||||||
B | 1380 | 1300-1450 | 42 | 45-41 | 280 | 79 | ||||||
XJ450-500 | 2000 | 1850-2250 | 12.5 | 15-8 | 980 | 160 | 5 | 90 | 83 | 500 | 450 | |
A | 1850 | 1800-2000 | 10 | 10-8 | 132 | 80 | ||||||
B | 1700 | 1650-1900 | 8 | 8-6 | 110 | 79 | ||||||
XJ450-550 | 2000 | 1850-2250 | 20 | 23-16 | 280 | 84 | ||||||
A | 1850 | 1800-2000 | 18 | 20-18 | 250 | 82 | ||||||
B | 1700 | 1650-1900 | 16 | 18-16 | 220 | 80 | ||||||
XJ450-600 | 2300 | 2100-2500 | 32 | 36-23 | 315 | 85 | ||||||
A | 2150 | 2000-2300 | 27 | 30-25 | 280 | 84 | ||||||
B | 1950 | 1900-2100 | 25 | 25-23 | 250 | 82 | ||||||
XJ450-650 | 2300 | 2100-2500 | 50 | 56-50 | 500 | 95 | ||||||
A | 2150 | 2000-2300 | 45 | 48-45 | 450 | 83 | ||||||
B | 1950 | 1900-2100 | 42 | 45-41 | 400 | 81 |
注:型號后面帶"A"代表葉輪次切削后的性能參數,電機功率也隨之調整配置。B、C、D葉輪經第二、三、四次切削,本性能不一一列舉,用戶選型可在性能內選擇即可。
